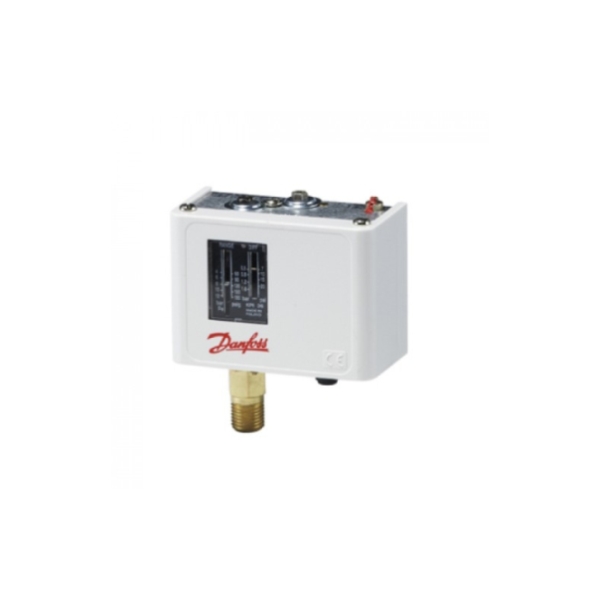

KPI35 slėgio rėlė

Aprašymas

KPI35 slėgio rėlė , kodas 060-121766.

Techninė informacija

Matavimo intervalas: 0,2 ÷ 8 bar
Diferencialas: 0,5 ÷ 1,5 bar
Išėjimas: 1 x SPDT
Temperatūra: – 40 ÷ 100°C
Prijungimas: G1/4“
Korpuso medžiaga: aliuminis
Apsaugos klasė: IP33
Elektrinis prijungimas: Pg13.5 (∅6 ÷ 14 mm)

Danfoss – šildymo, karšto vandens sistemoms, šilumos punktams gyvenamiems, komerciniams, gamybiniams pastatams.

KPI35 slėgio relė įjungia ir išjungia šildymo elementą arba kokį nors kitą elektros įrenginį.

Description

Danfoss KP/KPI pressure switches are used for regulating, monitoring and alarm systems in industry.
KP pressure switches are recommended for gaseous media (also water, but only when mounted directly on the pipe – do not use capillary tube mounting).

KPI pressure switches are suitable for plant in connection with liquid and gaseous media.
The pressure switches are fi tted with a singlepole switch changeover (SPDT). The position of the switch depends on the setting of the pressure control and the pressure in the connector.

KPI features

Danfoss KPI pressure switches are designed so that the bellows moves in the same proportion as the pressure change.
To ensure a snap function on contact changeover, an omega spring is located between bellows and contact system.

The design of KPI pressure switches gives the following advantages:

• High contact load
• Ultra-short bounce times
• Vibration-proof in the range 0-1000 Hz, 4 g (1 g = 9.81 m/s2)
• Long operating life
• Can be used for both liquids and gases
• Small dimensions – Easy to mount in panels
