OZW672.01 web serveris LPB/BSB valdikliui

Aprašymas

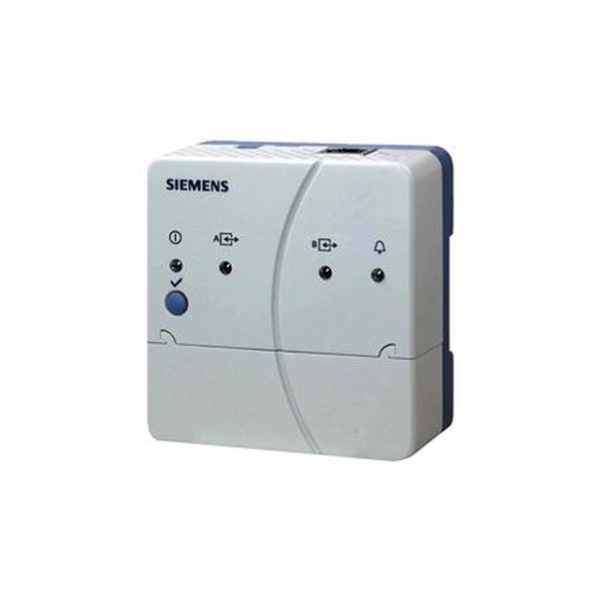

OZW672.01 web serveris LPB/BSB valdikliui RVD.

Pagrindinės elektroninio Siemens valdiklio RVD funkcijos:

• 8 programuojami iš anksto paruošti tipai
• saulės kolektorius buitinio vandens šildymui
• buitinio karšto vandens šildymas elektriniu šildytuvu
• papildymo funkcija
• komunikacija su Modbus

Prerequisites

The following conditions must be met to commission the web server:

• The web server is mounted and wired (see Installation instructions, G5711).
• The connected bus device is commissioned.
• The bus device has a valid address and is operational.
• The bus device works trouble free; the fault LED is not lit.
• The bus power supply to the bus device is turned on.
• Recommended by clock time supplier: The LPB bus device is clock slave with remote setting.

Technical data

• Power supply unit for web server (Tinklo serverio maitinimo blokas)

– Operating voltage AC 100 – 240 V ±10%
– Rated voltage AC 100 – 240 V
– Frequency 50/60 Hz
– Power consumption (incl. power supply unit) 3 VA typical
– Protection class II.
– Output voltage SELV 24 VDC
– Supply line fusing Max. 16 A
– Cable length (distance from AC 230 V plug to web server) Max. 1.6 m

• Web server

– Operating voltage SELV 24 VDC ±5%, 625 mA max.
– Power consumption 2 W typical

• Function data

– Clock reserve Min. 72 hours
– Device List 1 Bus device

• LPB/BSB bus

– Interface type: 2-wire connection

2-wire bus: DB/CL+, MB/CL– (non-exchangeable)
Bus load: E 0.6

– Permissible line length and cable types:

– Albatros2 System manual P2359
– Local Process Bus System engineering basic documentation P2370

• Ethernet

– Interface type: 100BaseTX, IEEE 802.3 compatible

– Bit rate: 100 Mbps
Protocol: TCP/ IP
Identification: Auto MDI-X

– Connection: RJ45 plug (screened)

Cable type: Standard Cat-5, UTP or STP
Cable length: Max. 100 m

Product safety

Information technology equipment – Safety: EN 60950-1

Electromagnetic compatibility

Immunity Industrial sector: EN 61000-6-2
Emissions (Residential, business and commercial as well as light industrial enviroments): EN 61000-6-3

Environmental compatibility

The product environmental declaration E5711en contains data on environmentally compatible product design and assessments (RoHS compliance, materials composition, packaging, environmental benefit, disposal) – ISO 14001 (environment); ISO 9001 (quality); SN 36350 (environmentally compatible products) 2002/95/EC (RoHS).

Degree of protection: IP 30 as per EN 60529

Protection class: III as per EN 60950-1
